Thread: forget the root password

  1. #31
    Join Date
    Dec 2009
    Location
    ON, Canada
    Posts
    4,910

    Default

    Quote Originally Posted by wigout View Post
    aasoror-

    Those cables look cheap (in the YEAH, CHEAP! sense of the word) and very useful for the project at hand. Good find.

    Have you actually used hyperterminal over UART? Aside from the cables, what equipment did you finally go with? Got any pictures of the setup? Or can you provide a walkthrough of connecting to the pbo this way?

    -wigout

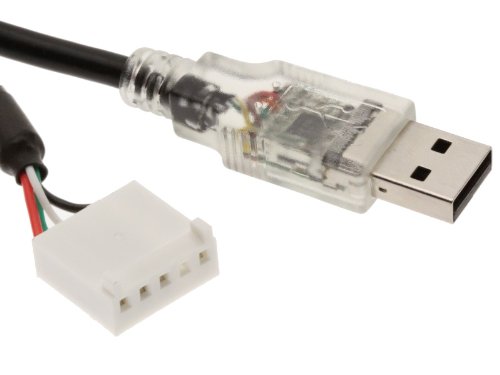

    Its still a work in progress .. everything is still in transit .. but I ordered this cable to be used as a usb/ttl converter.


    I have also got this as well ..



    I think you can now guess what I am planning to do

    Once I receive the cables I will do another round of shopping for solder iron + rosin core.

    Hope that info help

  2. #32
    Join Date
    Oct 2010
    Posts
    2

    Default

    Would this device also work to unbrick a PBO? I would rather get something like this than trying to assemble if from a bunch of other parts, as I am not very handy

    Would appreciate some advice from the experts. Thanks!

    [P.S. How do I display the image inline within the post?]
    Attached Images Attached Images
    Last edited by mega129; 10-15-2010 at 11:48 AM.

  3. #33
    Join Date
    Dec 2009
    Location
    Canada (ON)
    Posts
    2,036

    Default

    Quote Originally Posted by mega129 View Post
    Would this device also work to unbrick a PBO? I would rather get something like this than trying to assemble if from a bunch of other parts, as I am not very handy

    Would appreciate some advice from the experts. Thanks!

    [P.S. How do I display the image inline within the post?]
    Yes this should work fine; just make sure you enable the proper voltage O/P on your board. You want 3.3 Volt not the 5.0 Volt selection. I think that's what the jumper bridge is for it should not be connected between the VDD and the TX line but between the center pin and the 3.3 Volts line. This is just a calculated guess if you have documentation on this board look thru it to make sure.
    Last edited by snappy46; 10-15-2010 at 12:20 PM.

  4. #34
    Join Date
    Oct 2010
    Posts
    2

    Default

    Thanks snappy!

    Quote Originally Posted by snappy46 View Post
    Yes this should work fine; just make sure you enable the proper voltage O/P on your board. You want 3.3 Volt not the 5.0 Volt selection. I think that's what the jumper bridge is for it should not be connected between the VDD and the TX line but between the center pin and the 3.3 Volts line. This is just a calculated guess if you have documentation on this board look thru it to make sure.

  5. #35
    Join Date
    Jan 2010
    Location
    In my house, silly.
    Posts
    295

    Default

    I had one like this awhile back but it didn't last very long due to stress between the board and usb connector from only casual use. Be careful, particularly when you plug/unplug it since it's not encased like with the CA42 cables which offer not only good static protection but a natural strain relief as well. On the positive side, an open design like this makes it much easier to see which wires belong where.

  6. #36
    Join Date
    Mar 2010
    Posts
    10

    Default

    I was able to get the following circuit to work off the RS232 header on my motherboard. It was easy to make from spare parts and a breadboard and it worked the first time through.

    http://www.uchobby.com/index.php/200...tor-explained/

  7. #37
    Join Date
    Dec 2009
    Location
    Canada (ON)
    Posts
    2,036

    Default

    Quote Originally Posted by hoffman373 View Post
    I was able to get the following circuit to work off the RS232 header on my motherboard. It was easy to make from spare parts and a breadboard and it worked the first time through.

    http://www.uchobby.com/index.php/200...tor-explained/
    Clever and quite affordable considering the small cost of the components. Did you used the VCC of the PBO to power up the cct???

    And .... Where were you when I bricked my PBO way back and had to wait two weeks for my cable to come in ???????

    Cheers !!! and thank you for sharing your findings.

  8. #38
    Join Date
    Mar 2010
    Posts
    10

    Default

    Yes, I used the VCC from the PBO to power the circuit. I did that so that I would know that the circuit was using the correct voltage for the PBO.

  9. #39
    Join Date
    Feb 2011
    Posts
    1

    Default

    I'm in process of ordering a cable for my PBO and wanted an opinion on this:

    USB-3-3V-Auto-sensing-adapter


    ideally I could get one of these and not have to bother with cutting/splicing.

    thoughts?

  10. #40
    Join Date
    Feb 2011
    Posts
    5

    Default

    What happened with this cable/build did you get the cable ? & if you got it did it work on your PBO ?
